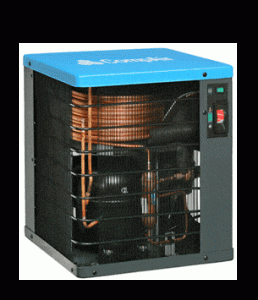

FXR Series 2.5-18.0 m3/min
Refrigerant Compressed Air Dryers
The larger FXR series refrigerant compressed air dryers deliver dependable operation and optimum performance, using an advanced heat exchanger, separation and refrigeration technology.
Life cycle costs are reduced and installation is a breeze with the FXR series thanks to an intelligent design.
- Long term performance
Compact and thermally efficient, the stainless steel brazed plate heat exchanger, is corrosion resistant and ensures air quality and long term performance. - Environmentally friendly
Energy efficient operation and the use of ozone friendly refrigerants reduce the FXR series refrigerant compressed air dryers, environmental impact. - High quality compressed air
Best possible dew point performance under all conditions delivers dependable high quality compressed air. - Reduced operating costs
The design of the brazed heat exchanger and integral separator ensures minimal pressure drop, improving system performance and reducing operating costs.
| Model | Flow Capacity m3/min(1) |
Total Power (kW) |
Power Supply (VAC 50hz) |
Refrigerant Type |
Dimensions (L x W x H) (mm) |
Connection (Male BSP) |
Weight (kg) |
| FXR25 | 2.5 | 0.6 | 230/1 | R134A | 601 x 363 x 861 | DN25 | 50 |
| FXR30 | 3.0 | 0.6 | 601 x 363 x 861 | DN25 | 53 | ||
| FXR49 | 4.9 | 0.9 | R407C | 601 x 363 x 921 | DN25 | 58 | |
| FXR66 | 6.6 | 1.4 | 761 x 443 x 971 | DN50 | 78 | ||
| FXR80 | 8.0 | 1.6 | 761 x 443 x 971 | DN50 | 85 | ||
| FXR100 | 10.0 | 2.1 | 811 x 493 x 1151 | DN50 | 100 | ||
| FXR133 | 13.3 | 2.6 | 811 x 493 x 1151 | DN50 | 112 | ||
| FXR150 | 15.0 | 2.8 | 811 x 493 x 1251 | DN50 | 134 | ||
| FXR180 | 18.0 | 3.4 | 400/3 | 811 x 543 x 1321> | DN65 | 152 |
The performance of the dryer (pressure dew point, power consumption, pressure drop etc.) depends mainly on the volume flow and pressure of the compressed air to be dried and the condenser refrigerant temperature.
(1)Measured and stated in accordance with ISO 1217 Annex C at the following conditions: Operating Pressure 7 bar, Air Intake Temperature 35°C, Ambient Temperature 25°C, Outlet Dewpoint 3°C.
